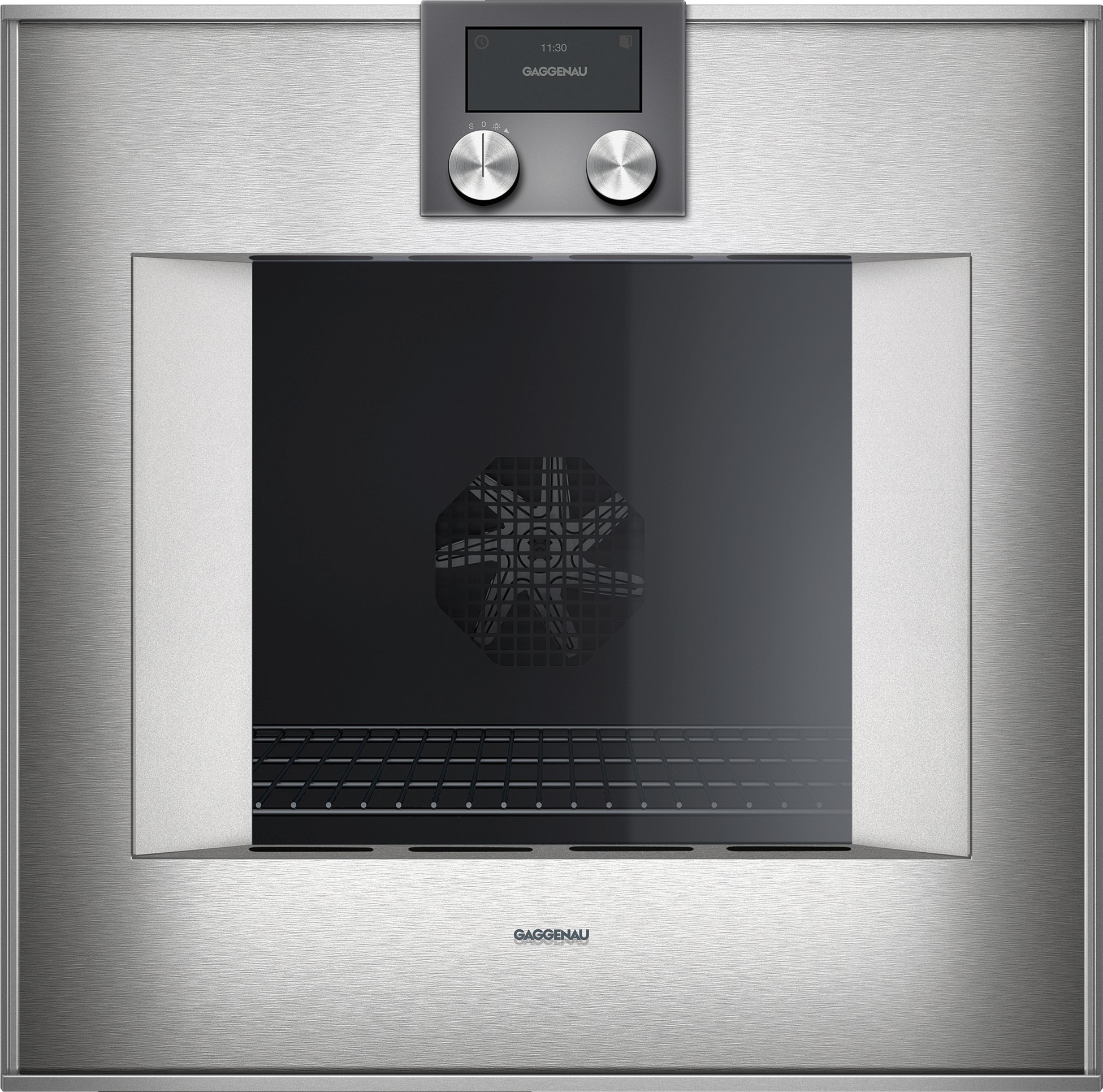

Oven 400 series
Stainless steel-backed full glass door
Controls at the top
Right-hinged / Left-hinged
Width 60 cm

• Hot air.
• Eco hot air.
• Top + bottom heat.
• Top heat.
• Bottom heat.
• Hot air+ bottom heat.
• Full surface grill + circulated air.
• Full surface grill.
• Compact grill.
• Baking stone function.
• Roaster function.
• Dough proofing.
• Defrosting.

• Automatic door opening.

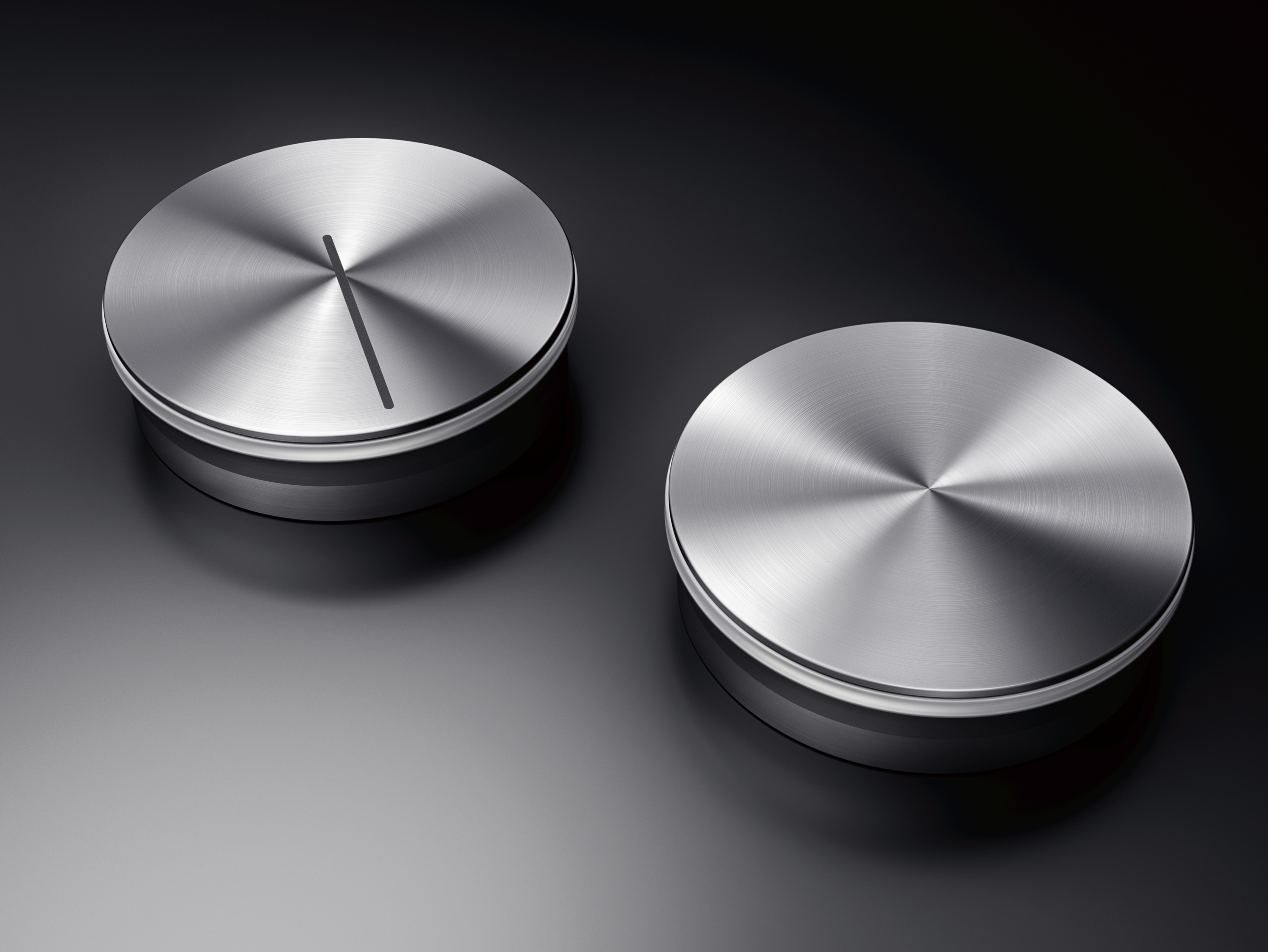

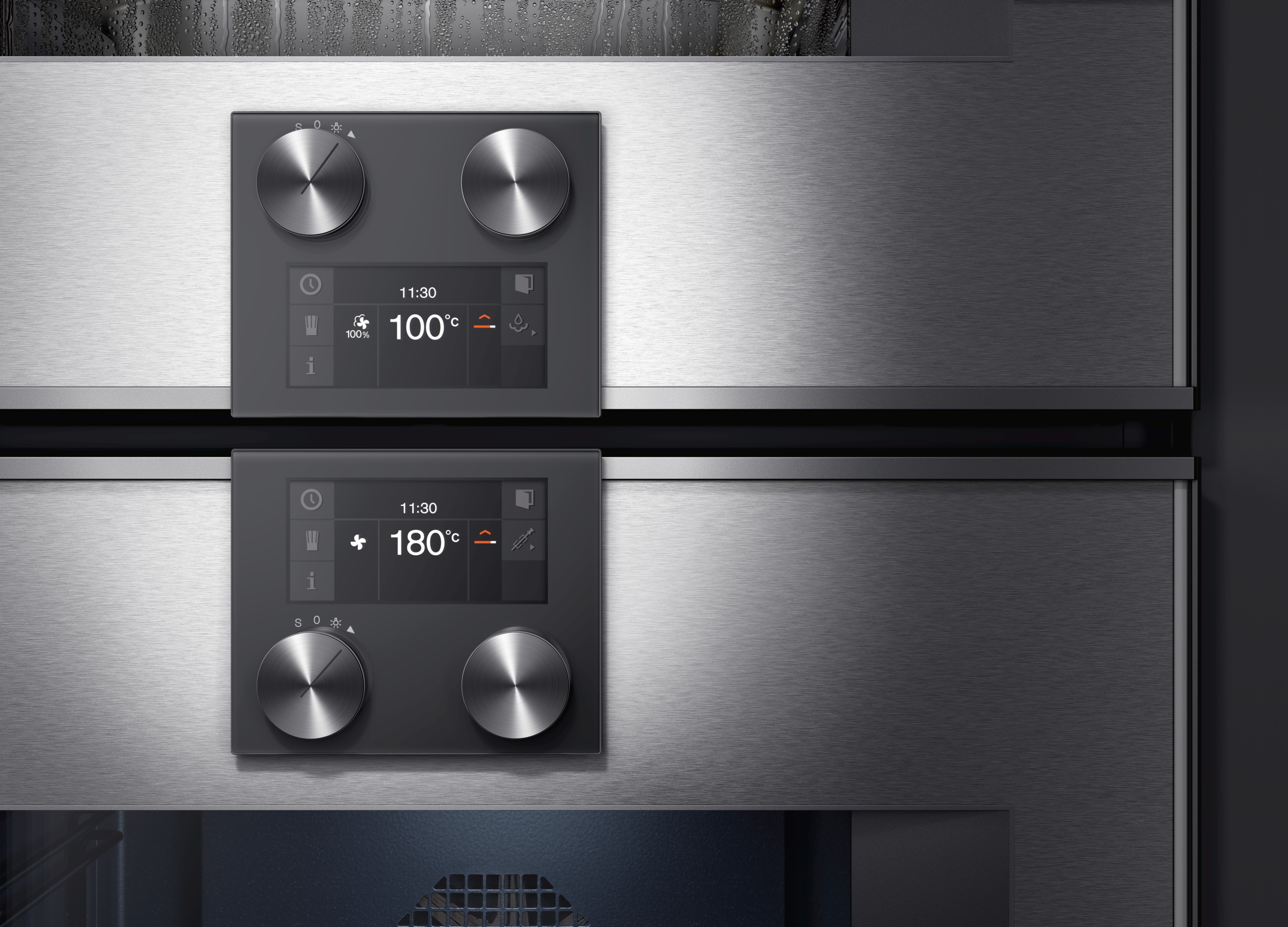

• Rotary knob and TFT touch display operation.
• Clear text display.
• Option to save individual recipes (incl. core temperature probe).
• Personalisation of automatic programmes.
• Information key with use indications.
• Side-opening door opens up to 180° angle.

• Three-point core temperature probe with automatic shut-off and estimation of cooking time.
• Automatic programmes.
• Baking stone socket.
• Actual temperature display.
• Rapid heating.
• Timer functions: cooking time, cooking time end, timer, stopwatch, long-term timer.
• 60 W halogen light on the top.
• 10 W halogen light on the side.
• Enamelled side shelf supports with 3 tray levels, pyrolysis-safe.
• Home network integration for digital services (Home Connect) either via cable connection LAN (recommended) or wireless via WiFi.

• Thermally insulated door with quadruple glazing.
• Child lock.
• Safety shut-off.
• Cooled housing with temperature protection.

• Pyrolytic system.
• Gaggenau enamel.
• Heated air cleaning catalyser.

• Door hinge not reversible.
• The façade of the appliance extends 47 mm from the furniture cavity.
• When planning a corner solution, pay attention to the 90° door opening angle.
• To achieve the 560 mm installation depth, the connection cable needs to follow the slanted edge on the lower right hand corner of the housing.
• The main socket needs to be planned outside of the niche.
• The LAN port can be found at the back on the upper right side.

• Energy efficiency class A at a range of energy efficiency classes from A+++ to D.
• Total connected load 3.7 kW.
• Plan a connection cable.
