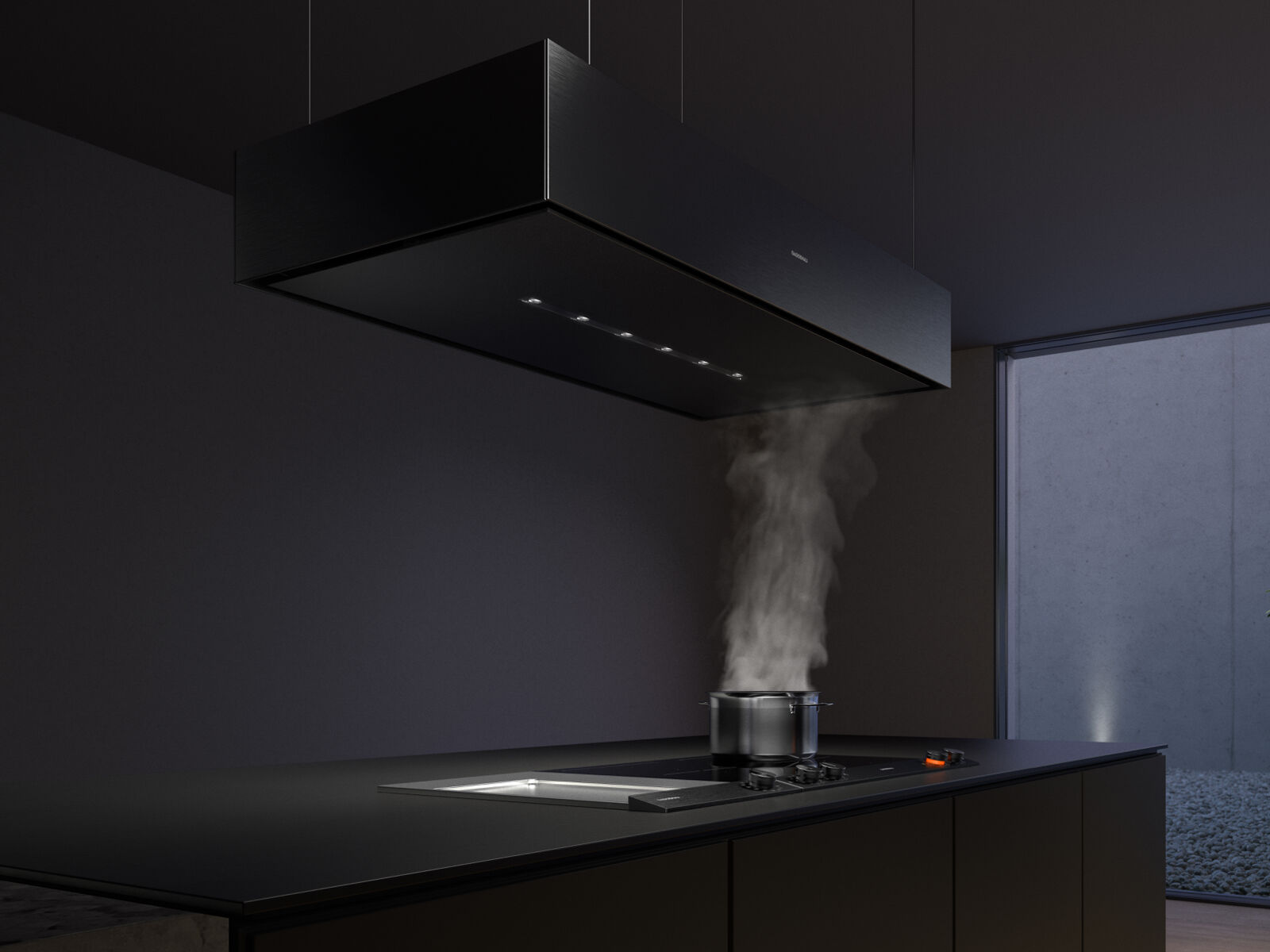

Ceiling ventilation 200 series, Gaggenau Black,
Width 105 cm

AC270101

Price: 85000.00

  • Height adjustable ceiling ventilation, when not in use it can be completely lifted onto the ceiling or integrated in the ceiling
  • Precision crafted, solid aluminium design
  • Energy-saving, low-noise fan
  • Rim extraction
  • Function for automatic, sensor-controlled power adjustment depending on the build-up of cooking vapours
  • Easy installation on the ceiling with provided ceiling mounting plate
  • Easy maintenance of the filters
  • Dimmable, neutral white LED light for ideal illumination of the cooktop
  • Air recirculation
  • Performance and noise level, output level 3/Intensive:
  • Air output according to EN 61591.
  • Sound power level according to EN 60704-3.
  • Odour reduction for air recirculation in accordance with EN 61591.
  • Air recirculation: 515 / 680 m³/h.
  • 67 / 74 dB (A) re 1 pW.
  • Odour reduction: > 90 %
  • 3 electronically controlled power levels and 1 intensive mode.
  • Remote control is included in delivery.
  • Automatic function with sensorcontrolled run-on function.
  • Interval ventilation, 6 min.
  • Grease filter saturation indicator.
  • Activated charcoal filter saturation indicator.
  • 3 metal grease filters, dishwasher-safe.
  • 3 activated charcoal filters.
  • The activated charcoal filter is suitable for the preparation of fish and seafood due to special treatment.
  • Protection against allergen particles due to special treatment.
  • Gaggenau Black anodized aluminium.
  • Fan technology with highly efficient, brushless DC motor (BLDC).
  • Easy mounting system for simple installation and alignement.
  • Neutral white LED light (3500 K), continuously dimmable.
  • Light colour in different white tones (2700 – 5000 K) can be adjusted via Home Connect.
  • Lamp output 6 x 3 W.
  • Illuminance 1156 lx continuously dimmable.
  • Cooktop-based ventilation control (with suitable cooktop).
  • Home network integration for digital services (Home Connect) wireless via WiFi.
  • The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.
